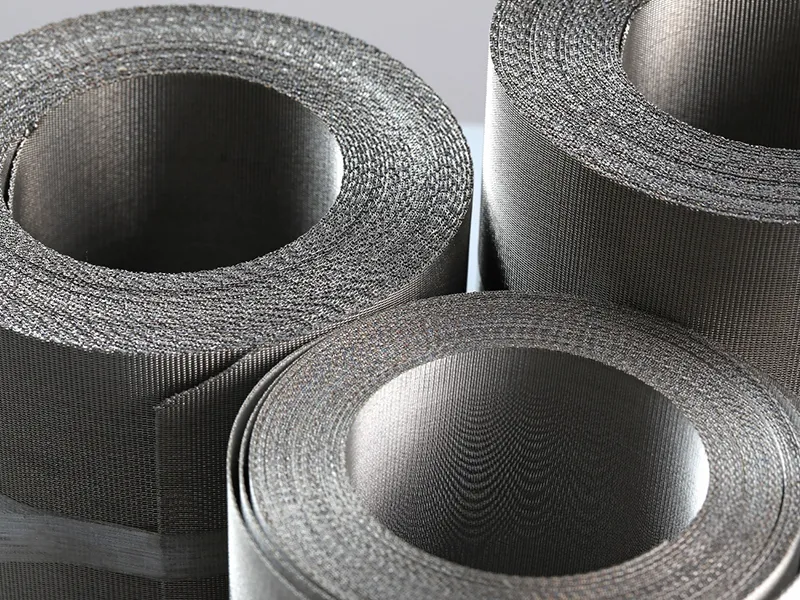

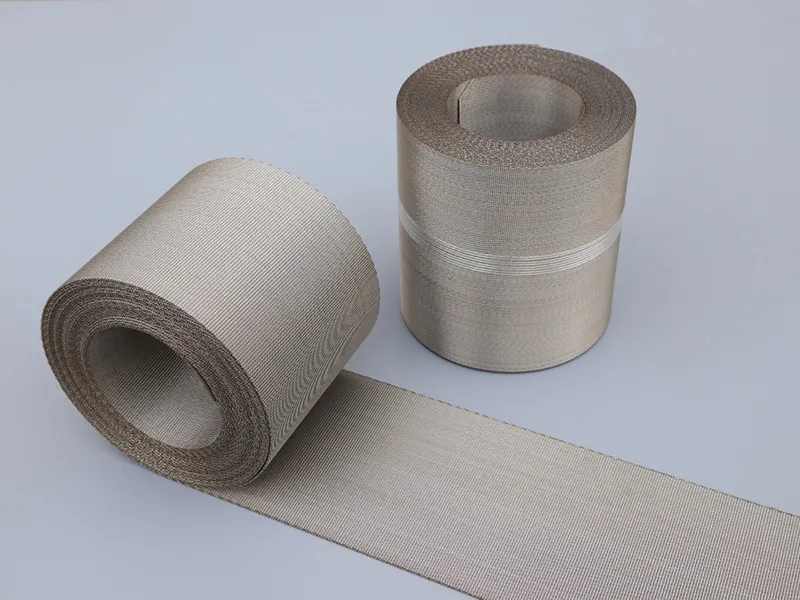

Continuous belt screens are reverse dutch weave filter belts crafted from stainless steel wires. These innovative continuous (automatic) belt screens serve as a progression from traditional extruder screens, designed to effectively remove impurities from molten plastic. When utilized in conjunction with screen changers, the automatic belt filter system enables seamless and uninterrupted production, delivering high filtering performance in cast film, blown film production, and various other plastic filtering processes.

We are equipped to customize the wire mesh using knife or plasma cutting methods to meet the specific requirements of our customers.

Key Specifications:

Material: Stainless steel 304, 304L, 316, 316L, etc.

High tensile strength and normal tensile strength

Common belt widths: 97mm, 127mm, 157mm, 160mm , with customization available. Maximum width is 500mm

Standard length: 10 m, with special orders accommodated.

Popular Mesh Sizes

48 × 10 mesh for 400 nominal micron

72 × 15 mesh for 250 nominal micron

132 × 17 mesh for 170 nominal micron

152 × 24 mesh for 160 nominal micron

260 × 40 mesh for 55 nominal micron
