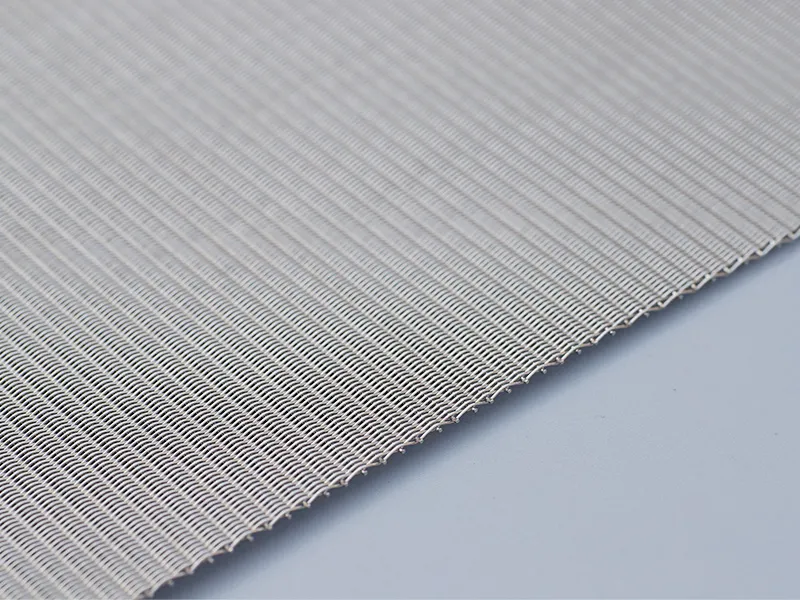

Dutch Weave Mesh

Dutch weaves are mechanically stronger meshes than square, oblong and broad weaves and are designed for industrial filtration. The surface is closed so that filtration takes place at the point where warp and weft join. The mesh is manufactured as plain weave and twilled weave. The warp wires are inter woven with wider spaces than the weft wires. GFE stocks dutch weave meshes from 3 µm to 300 µm made of stainless steels 304, 316 and 904 L, thereby covering most meshes required for industrial filtration. In contrast to square meshes, dutch weave is characterized by its significantly higher strength.

Plain Dutch Weave Mesh
Mesh	Wire Diamter (mm)	Norminal Filter Rating mm	Absoulte Filter Rating mm
12×64	0.60×0.40	280-300	300
14×88	0.45×0.32	250-280	220
24*110	0.35*0.25	117-125	100
25*140	0.30*0.20	135-150	110
30*150	0.22*0.18	100-100	85
37*308	0.25*0.085	75-80	80
40*200	0.18*0.14	70-80	75
50*250	0.14*0.112	55-61	63
50*390	0.16*0.07	45-55	60
60*450	0.16*0.06	40-45	48
80*330	0.13*0.09	35-40	42
80*705	0.125*0.04	20-30	34
165*1200	0.04*0.025	15-18	20
Twilled Dutch Weave Mesh
Mesh	Wire Diamter (Mm)	Norminal Filter Rating Mm	Absoulte Filter Rating Mm
20*150	0.28*0.20	110-120	100
30*360	0.25*0.15	90-100	80
40*560	0.18*0.10	70-75	55
90*780	0.10*0.07	28-34	25
200*600	0.06*0.04	19-21	30
165*800	0.07*0.05	14-16	20
120*1100	0.07*0.05	12-16	18
165*1400	0.071*0.04	15-17	10
200*1400	0.071*0.04	11-13	5
250*1400	0.055/0.04	11-12	4
325*2300	0.033*0.022	8-9	2
375*2300	0.033/0.02	6-7	1
400*2800	0.03*0.02	5.6	1
